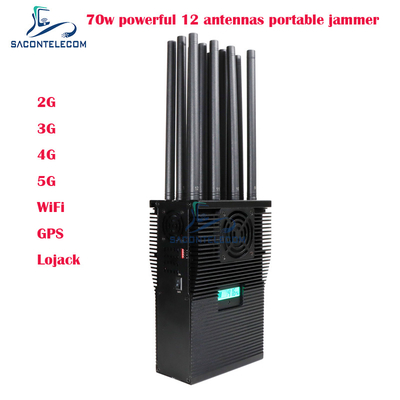

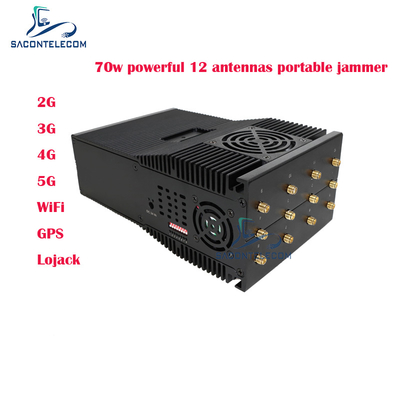

12 Antennas 70w Portable Mobile Phone Signal Jammer 2G 3G 4G 5G WiFi Lojack GPS USA Type
Descriptions:
New high power 70 watts 12 Antennas handheld design mobile phone signal Jammer SA-PJ12-Npro, jamming up to 60 meters for all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G 5G, and CDMA 450Mhz, Block GPS, Wi-Fi 2.4G 5G, Walkie-Talkie UHF/VHF and LORA,LOJACK etc. Battery capacity LCD display (Capacity percentage, working Voltage/Current) is popular in the market. Good cooling system with heat sink and 4 big fan inside, be charged in car and AC power supply.
Features:
1. New powerful 12 bands portable jammer with 12 antennas design, blocking all cell phone 5G 4G 3G 2G LORA LOJACK GPS Wi-Fi RF signals;
2. 70 watts high output power, Jamming range 2 to 60 meters (at-75dBm, depends on signal strength in given area);
3. Good cooling system with 4 cooling fans inside and bigger hot sink;
4. With DIP switch, can turn on/off any signal band without affect other bands;
5. Power supply: AC100-240V or Additional Car Charger DC12V to Dc28V;
6. With built-in battery, can work 60 minutes, repeated charging faster;
7. Battery capacity LCD display (Capacity percentage, working Voltage/Current);
8. Safe case packing and handheld for optional.
Specifications:
| Key technical specifications: SA-PJ12-Npro-US |
| Channel |
Output port |
Frequency range |
Average out-putting power ±1dbm |
| CH 1 |
VHF/LOJACK |
135-175MHz |
5W |
| CH 2 |
5G3.5G/3.7G |
3400-3800MHz |
5W |
| CH 3 |
WIFI5.8G/5.2G |
5125-5850MHz |
2W |
| CH 4 |
4GLTE Low |
698-803MHz |
8W |
| CH 5 |
5G600 or 5G1500 |
617-698MHz |
8W |
| CH 6 |
GPSL2L3L4L5 |
1170-1390MHz |
5W |
| CH 7 |
GPSL1 |
1560-1610MHz |
5W |
| CH 8 |
4GLTE High |
2496-2690MHz |
6W |
| CH 9 |
CDMA/GSM&LORA |
850-960MHz |
8W |
| CH 10 |
DCS/PCS |
1805-2000MHz |
6W |
| CH 11 |
3G |
2110-2180MHz |
6W |
| CH 12 |
WIFI2.4G/4G2300 |
2300-2485MHz |
6W |
|
Power supply: adapter 50 to 60Hz AC (110-240V AC/28V DC)
Additional Car Charger DC12V to Dc28V
Built-in battery:25.2V/5200mAh, Continue working: Around 60 minutes
|
|
Dimensions: (length, width, height) 210x133x85mm (without antenna)
Net weight: 2.5kg Gross weight: 3.0kg
Length of antenna :192mm Gain:2.5dbi
|
| Neutral packing size: 300*270*130mm Gross weight: 4.0kg |
| Safe case packing size: 340*330*140mm Gross weight: 6.0kg |
Total power: 70W
Shielding radius: (10-60) meters at, Still depends on the strength signal in given area |
Packing Lists:
1pcs portable jammer host
12pcs omni antennas
1pcs AC charger
Additional Car Charger DC12V to Dc28V
Additional Carry Case Size 340 x 330x 140mm, 2.0kg
